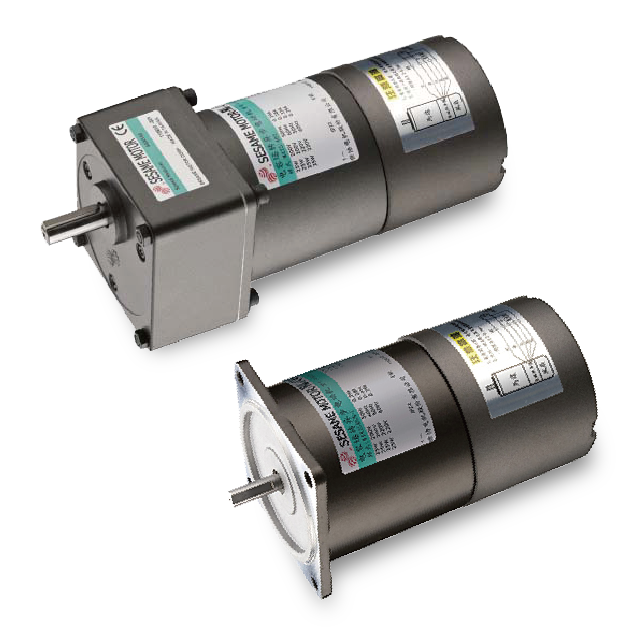

lead wire type 6w-40w

• high braking & holding force
  built-in brake will stop the motor instantly when power off and accurately holds the load.
• instant brake
  regardless of rpm, the magnetic brake can control the overturns within 2 to 3 turns. it is an ideal motor for applications involving frequent forward/reverse operation (brake frequency limit: 10 times per minute).
• wide ranges of model work with speed reducer (with pinion shaft, gn or gx model).
• variable ac power input options.
• output 6w up to 90w.

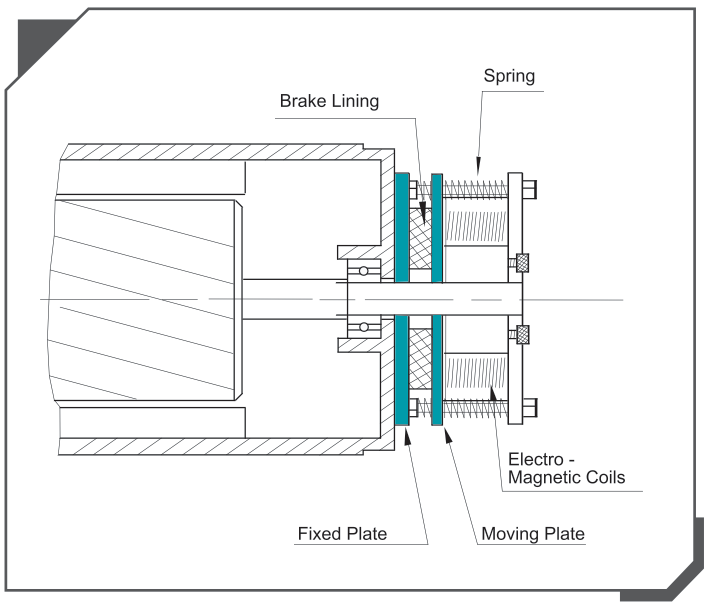

adjustment of brake clearance
the ideal brake clearance pre-setting is 0.15 mm (around the thickness of a name card). after a period of usage, the clearance is widened due to lining friction and wear. if the clearance is bigger than 0.3 mm, please contact us or replace the lining.

---

electro magnetic brake motors & gear motors specifications
output 6w (1/125 hp), motors
output 6w (1/125 hp), gear motors □ = ratio, 3-180

---

output 15w (1/50 hp), motors
output 15w (1/50 hp), gear motors □ = ratio, 3-180

---

output 25w (1/30 hp), motors
output 25w (1/30 hp), gear motors □ = ratio, 3-180

---

output 40w (1/19 hp), motors
output 40w (1/19 hp), gear motors □ = ratio, 3-180

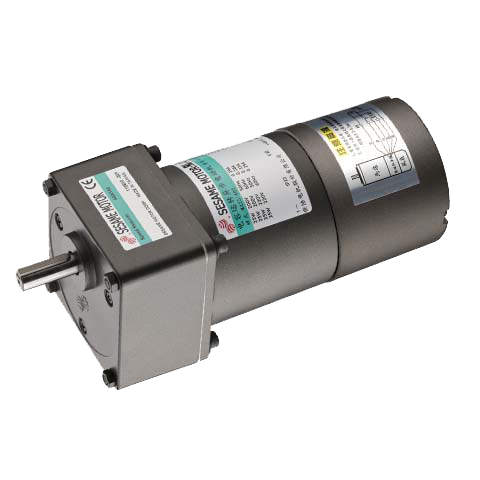

lead wire type 60w-90w

• high braking & holding force
  built-in brake will stop the motor instantly when power off and accurately holds the load.
• instant brake
  regardless of rpm, the magnetic brake can control the overturns within 2 to 3 turns. it is an ideal motor for applications involving frequent forward/reverse operation (brake frequency limit: 10 times per minute).
• wide ranges of model work with speed reducer (with pinion shaft, gn or gx model).
• variable ac power input options.
• output 6w up to 90w.

adjustment of brake clearance
the ideal brake clearance pre-setting is 0.15 mm (around the thickness of a name card). after a period of usage, the clearance is widened due to lining friction and wear. if the clearance is bigger than 0.3 mm, please contact us or replace the lining.

---

electro magnetic brake motors & gear motors specifications
output 60w (1/12 hp), motors
output 60w (1/12 hp), gear motors □ = ratio, 3-200

---

output 90w (1/8 hp), motors
output 90w (1/8 hp), gear motors □ = ratio, 3-200

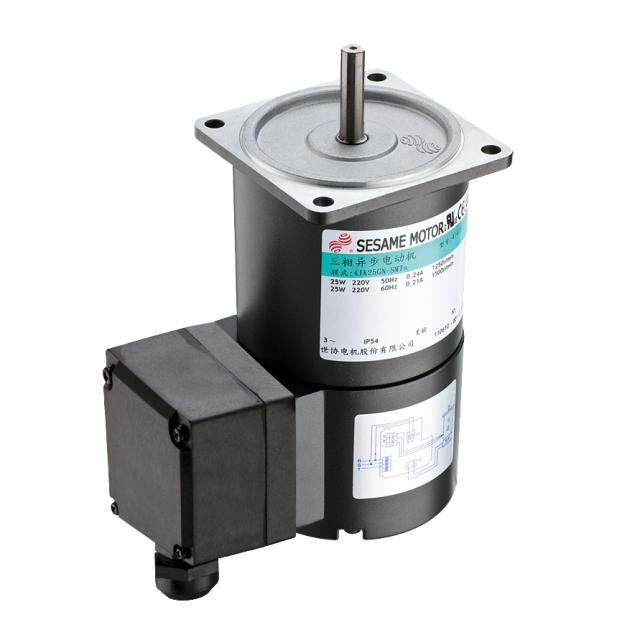

terminal box type 6w-40w

• high braking & holding force
  built-in brake will stop the motor instantly when power off and accurately holds the load.
• instant brake
  regardless of rpm, the magnetic brake can control the overturns within 2 to 3 turns. it is an ideal motor for applications involving frequent forward/reverse operation (brake frequency limit: 10 times per minute).
• wide ranges of model work with speed reducer (with pinion shaft, gn or gx model).
• variable ac power input options.
• output 6w up to 90w.

adjustment of brake clearance
the ideal brake clearance pre-setting is 0.15 mm (around the thickness of a name card). after a period of usage, the clearance is widened due to lining friction and wear. if the clearance is bigger than 0.3 mm, please contact us or replace the lining.

---

electro magnetic brake motors & gear motors specifications
output 6w (1/125 hp), motors
output 6w (1/125 hp), gear motors □ = ratio, 3-180

---

output 15w (1/50 hp), motors
output 15w (1/50 hp), gear motors □ = ratio, 3-180

---

output 25w (1/30 hp), motors
output 25w (1/30 hp), gear motors □ = ratio, 3-180

---

output 40w (1/19 hp), motors
output 40w (1/19 hp), gear motors □ = ratio, 3-180

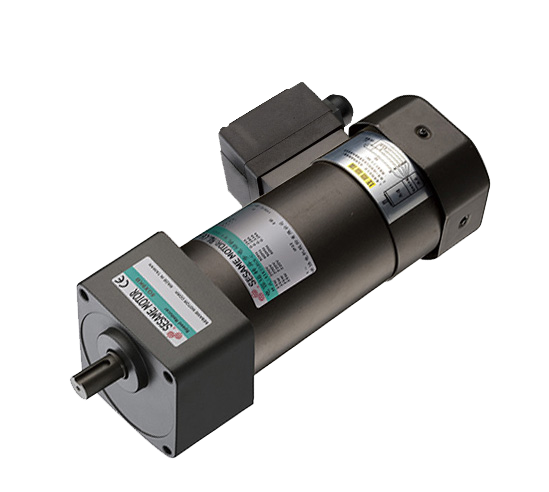

terminal box type 60w-90w

• high braking & holding force
  built-in brake will stop the motor instantly when power off and accurately holds the load.
• instant brake
  regardless of rpm, the magnetic brake can control the overturns within 2 to 3 turns. it is an ideal motor for applications involving frequent forward/reverse operation (brake frequency limit: 10 times per minute).
• wide ranges of model work with speed reducer (with pinion shaft, gn or gx model).
• variable ac power input options.
• output 6w up to 90w.

adjustment of brake clearance
the ideal brake clearance pre-setting is 0.15 mm (around the thickness of a name card). after a period of usage, the clearance is widened due to lining friction and wear. if the clearance is bigger than 0.3 mm, please contact us or replace the lining.

---

electro magnetic brake motors & gear motors specifications
output 60w (1/12 hp), motors

model	output (w)	voltage (v)	freq. (hz)	pole (p)	rated speed (rpm)	rated time ​(min)	starting torque (kg.cm)	rated torque (kg.cm)	rated current (a)	capacitor (μf)
5ik60a-afmt	60	1ø 100/110	50/60	4	1200/1650	30	2.6/2.94	5.0/3.5	1.8/1.12	16/300v
5ik60a-cfmt	60	1ø 200/220	50/60	4	1250/1600	30	3.62/4.41	4.64/3.63	0.64/0.54	4/450v
5ik60a-cefmt	60	1ø 230/240	50	4	1300/1350	30	4.14/5.22	4.56/4.4	0.56/0.55	4/450v
5ik60a-sfmt	60	3ø 220	50/60	4	1300/1550	30	13.72/10.70	4.47/3.77	0.41/0.39	-
5ik60a-ufmt	60	3ø 380	50/60	4	1400/1550	30	14.33/10.15	4.2/3.79	0.21/0.22	-

output 60w (1/12 hp), gear motors

model	output (w)	voltage (v)	freq. (hz)	pole (p)	rated speed (rpm)	rated time ​(min)	starting torque (kg.cm)	rated torque (kg.cm)	rated current (a)	capacitor (μf)
5ik60gn-afmt 5ik60gx-afmt	60	1ø 100/110	50/60	4	1200/1650	30	2.6/2.94	5.0/3.5	1.8/1.12	16/300v
5ik60gn-cfmt 5ik60gx-cfmt	60	1ø 200/220	50/60	4	1250/1600	30	3.62/4.41	4.64/3.63	0.64/0.54	4/450v
5ik60gn-cefmt 5ik60gx-cefmt	60	1ø 230/240	50	4	1300/1350	30	4.14/5.22	4.56/4.4	0.56/0.55	4/450v
5ik60gn-sfmt 5ik60gx)-sfmt	60	3ø 220	50/60	4	1300/1550	30	13.72/10.70	4.47/3.77	0.41/0.39	-
5ik60gn-ufmt 5ik60gx-ufmt	60	3ø 380	50/60	4	1400/1550	30	14.33/10.15	4.2/3.79	0.21/0.22	-

□ = ratio, 3-200

---

output 90w (1/8 hp), motors

model	output (w)	voltage (v)	freq. (hz)	pole (p)	rated speed (rpm)	rated time ​(min)	starting torque (kg.cm)	rated torque (kg.cm)	rated current (a)	capacitor (μf)
5ik90a-afmt	90	1ø 100/110	50/60	4	1300/1650	30	4.76/5.86	6.68/5.33	1.5/1.41	22/250v
5ik90a-cfmt	90	1ø 200/220	50/60	4	1300/1650	30	4.3/4.21	6.89/5.34	0.76/0.72	5/450v
5ik90a-cefmt	90	1ø 230/240	50	4	1350/1350	30	4.93/5.08	6.44/6.42	0.66/0.68	5/450v
5ik90a-sfmt	90	3ø 220	50/60	4	1400/1650	30	23.3 18.25	6.4/5.3	0.7/0.6	-
5ik90a-ufmt	90	3ø 380	50/60	4	1400/1650	30	23.3/18.14	6.27/ 5.23	0.4/0.3	-

output 90w (1/8 hp), gear motors □ = ratio, 3-200
